OVERVIEW • APR 2025

Getting Started

Welcome to the comprehensive guide for using our Authentication Template. This powerful tool simplifies the implementation of secure user authentication in your projects.

FEATURES • APR 2025

Key Features

Our Authentication Template is designed to simplify the implementation of secure user authentication in your web and mobile applications. With support for social logins, JWT-based sessions, and email verification, this template saves you time while maintaining high security standards.

Social Logins

Seamless integration with Google and GitHub authentication.

JWT Sessions

Secure token-based authentication for robust session management.

Email Verification

Confirm user identities with email-based OTP verification.

Scalable Architecture

Modular design for both frontend and backend components.

INSTALLATION • APR 2025

SetUp Guide

Quick Start

Get up and running in minutes

Download and Extract the Template
Extract the template to your preferred project directory and open it in your code editor.

Install Dependencies

Open Frontend & Backend in different terminals

cd Frontend
npm install --legacy-peer-deps

cd ../Backend
npm install

Configure Environment Variables
Create a .env file in the backend & frontend directory with the necessary environment variables (details in the next section).
Start the Application
```
cd Backend
npm run dev
```
Test the Application

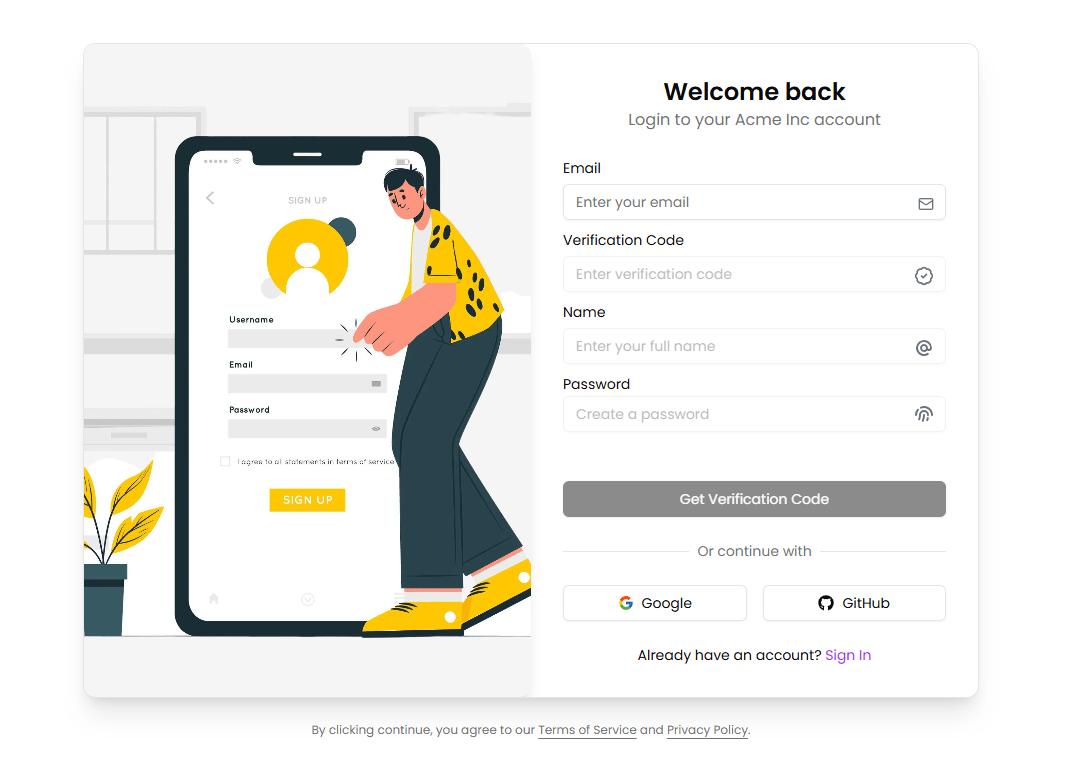

Open your browser and visit http://localhost:3000 to interact with the login interface.

CONFIGURATION • APR 2025

Environment Configuration

Setting up your .env file

Configure your environment variables for optimal security

Create a .env file in the backend directory with the following variables:

MONGODB_URI=mongodb://localhost:27017/your_database

FRONTEND_URL=http://localhost:3000

BACKEND_URL=http://localhost:5000

SESSION_SECRET=your_secret_key

JSONWEBTOKEN_SECRET=your_jwt_secret

EMAIL_HOST=smtp.example.com

EMAIL_PORT=587

EMAIL_FROM=your_email@example.com

EMAIL_PASS=your_email_password

GOOGLE_CLIENT_ID=your_google_client_id

GOOGLE_CLIENT_SECRET=your_google_client_secret

GITHUB_CLIENT_ID=your_github_client_id

GITHUB_CLIENT_SECRET=your_github_client_secret

SESSION_SECRET & JWT_TOKEN

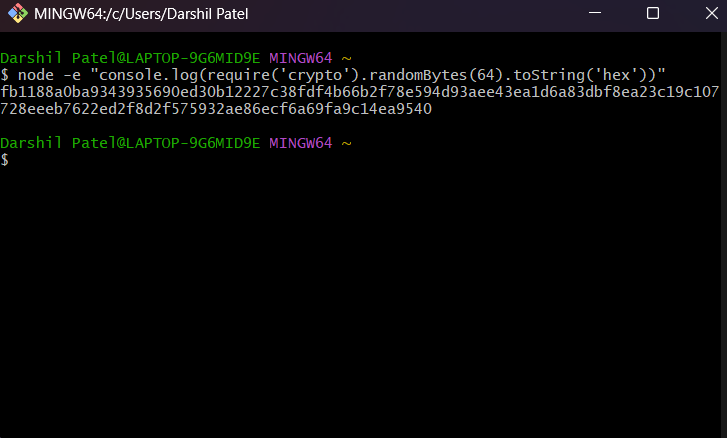

Use a secure random string generator to create these secret keys. You can use the following command in your terminal:

"node -e "console.log(require('crypto').randomBytes(64).toString('hex'))""

Run this command twice to generate both SESSION_SECRET and JSONWEBTOKEN_SECRET.

Email Configuration

To set up email configuration for Gmail:

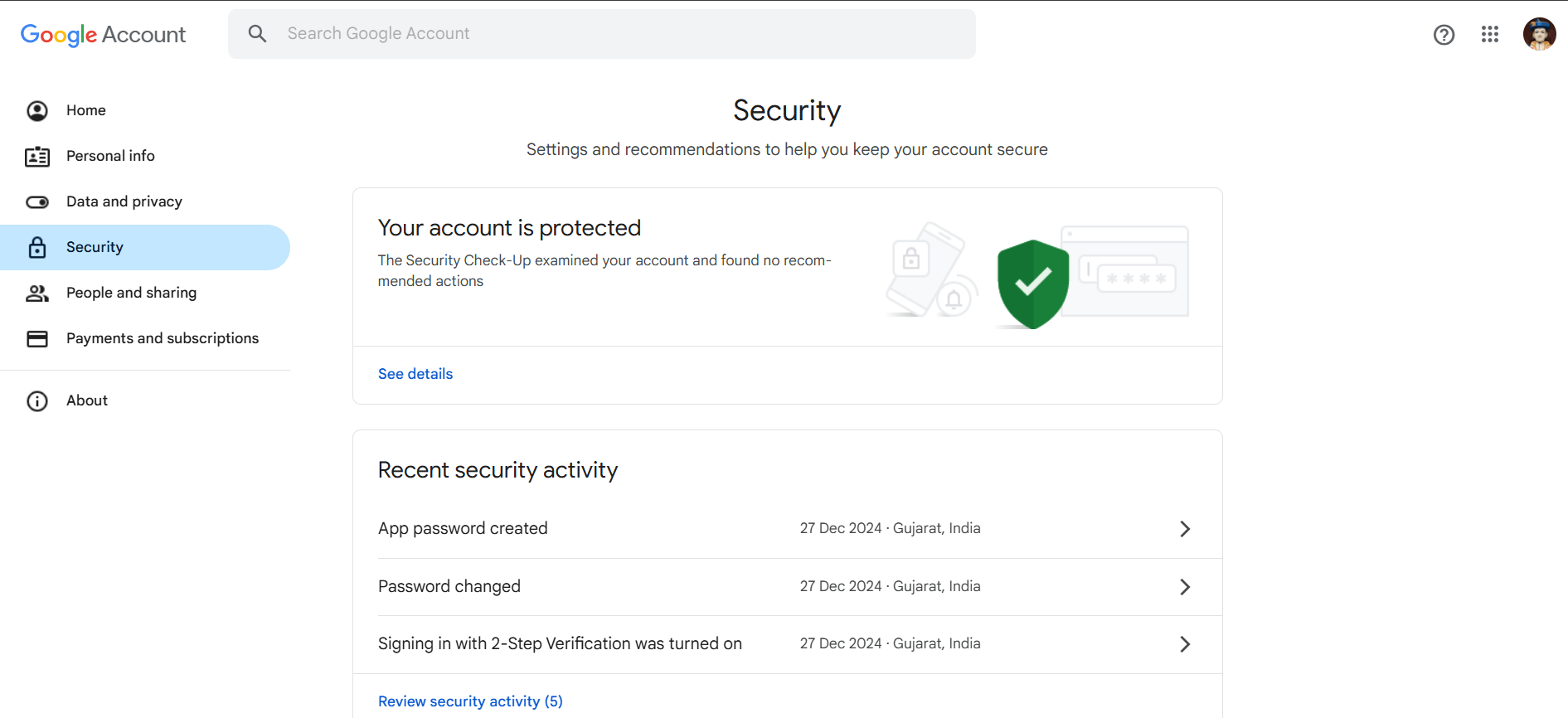

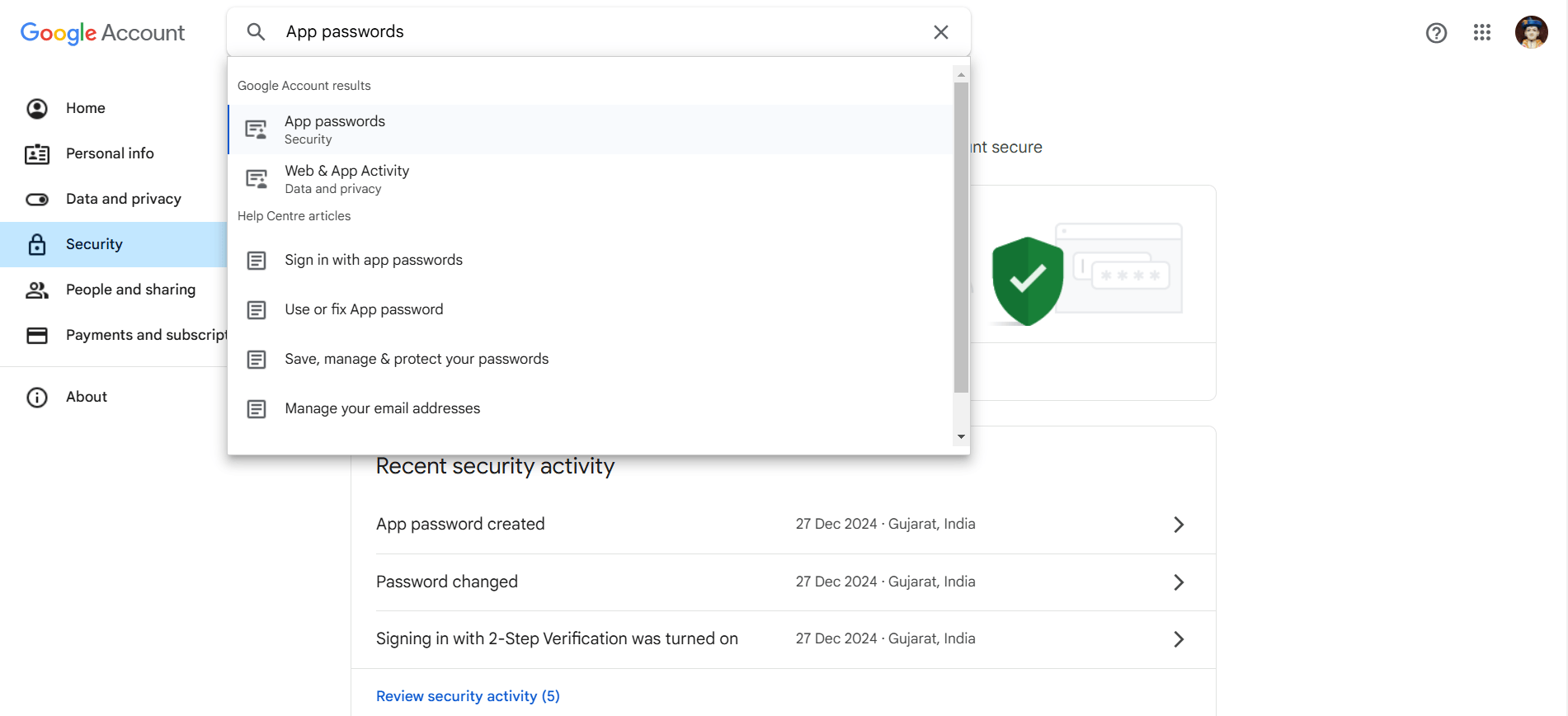

Go to your Google Account settings.
Navigate to the "Security" tab.
Enable "2-Step Verification" if not already enabled.

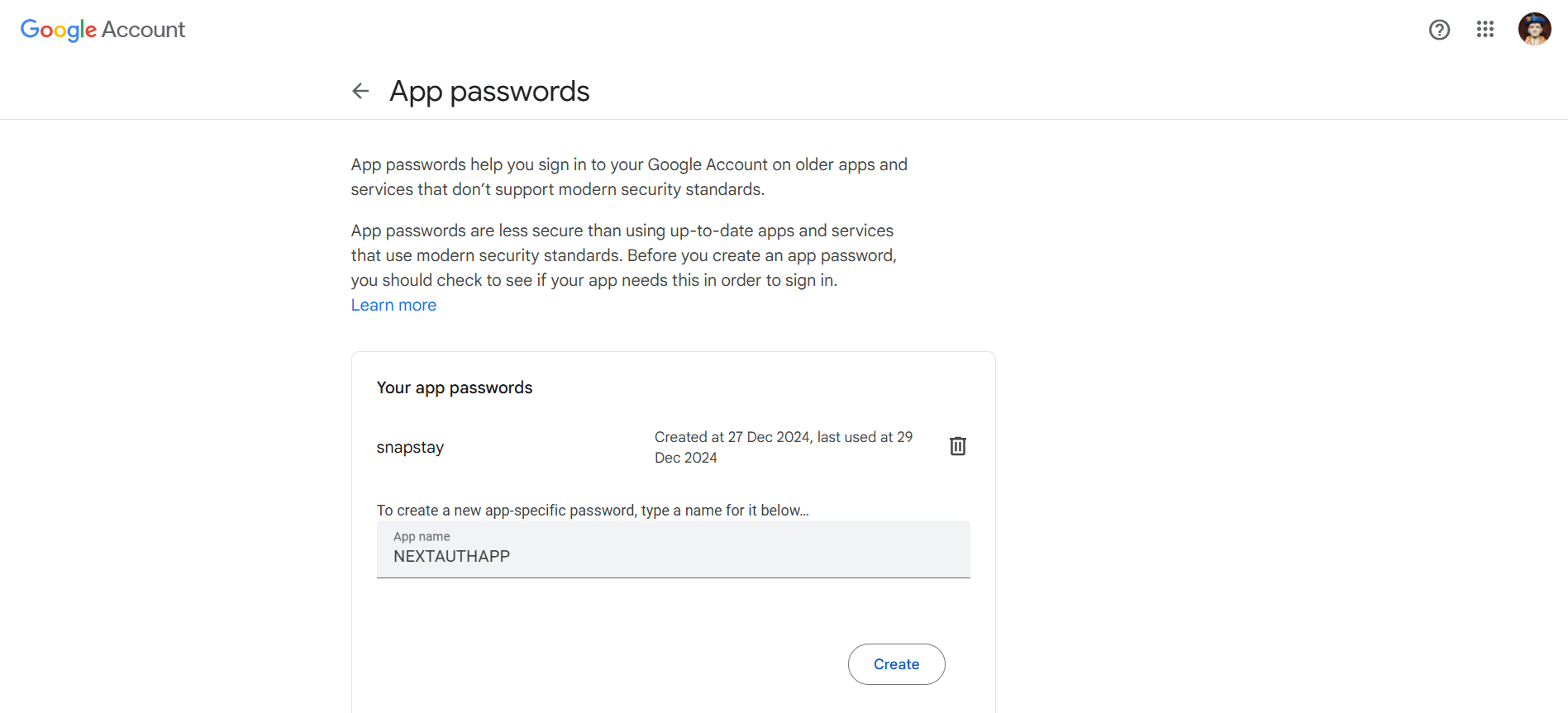

Go to "App passwords" under "Signing in to Google".
Select "Mail" and "Other (Custom name)" from the dropdowns.
Enter a name for the app (e.g., "AuthTemplate").
Click "Generate" to get your app password.
Use this password as your EMAIL_PASS in the .env file.

Google OAuth Credentials

To set up Google OAuth:

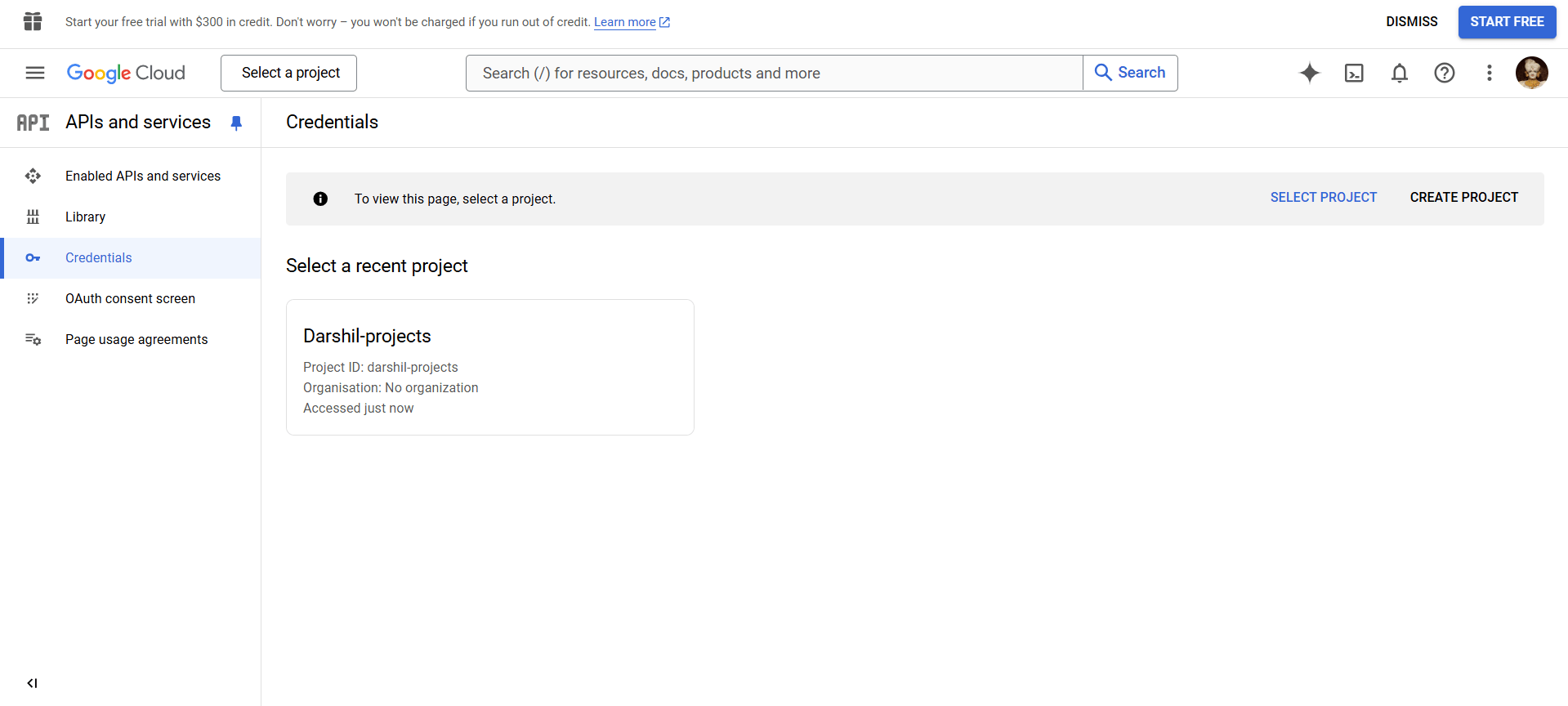

Go to the Google Cloud Console (https://console.cloud.google.com/).
Create a new project or select an existing one.

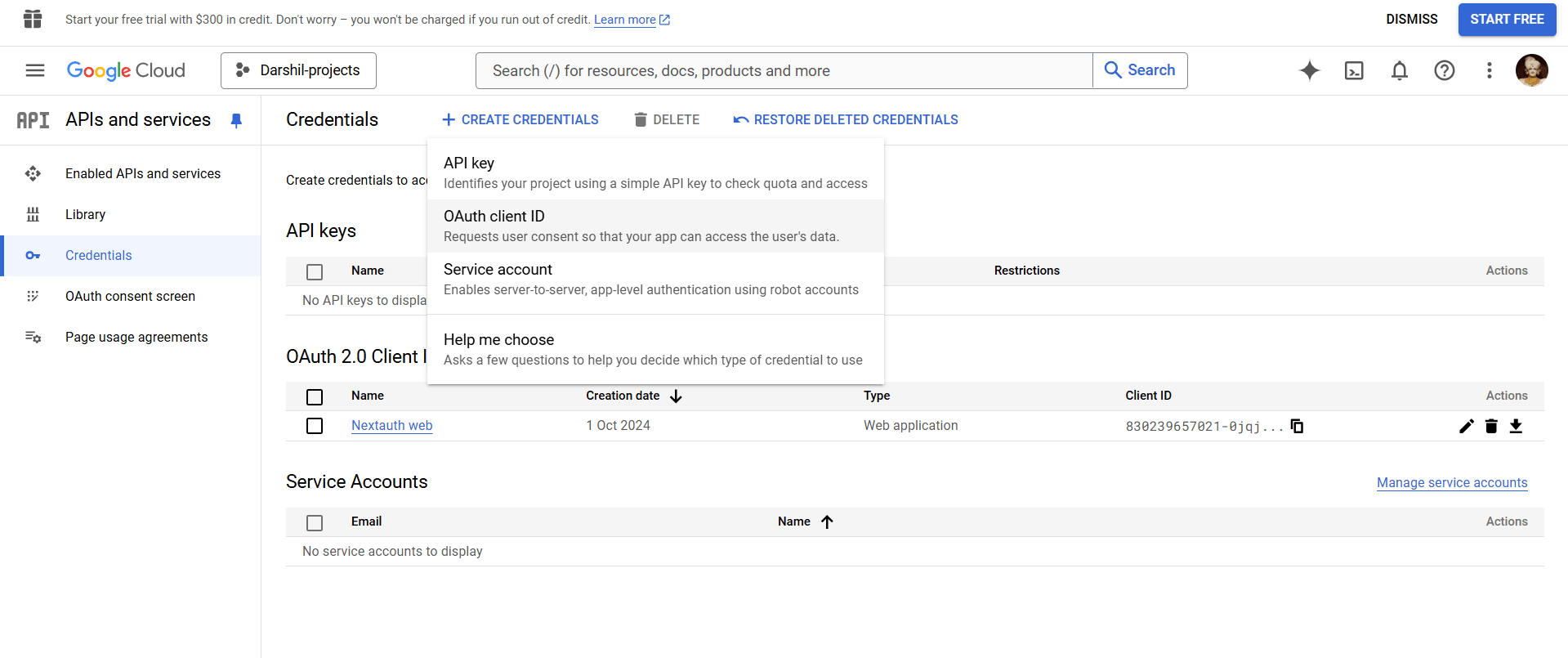

Navigate to "APIs & Services" > "Credentials".
Click "Create Credentials" and select "OAuth client ID".
Choose "Web application" as the application type.

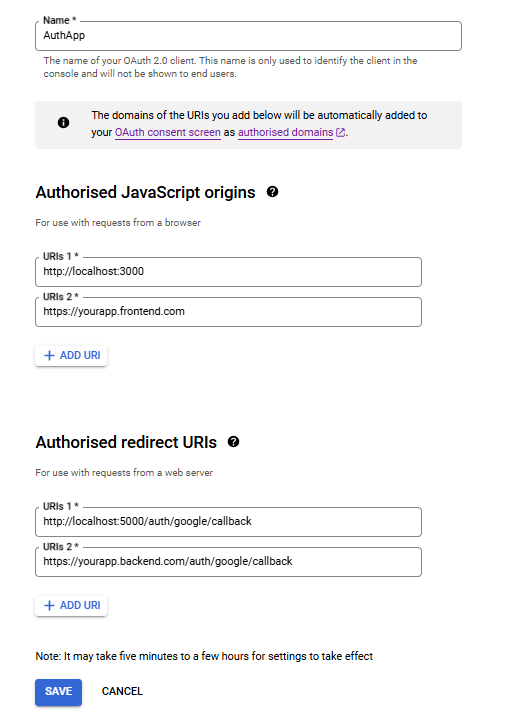

Add authorized JavaScript origins (e.g., http://localhost:3000).
Add authorized redirect URIs (e.g., http://localhost:5000/auth/google/callback).
Click "Create" to generate your client ID and client secret.
Use these as GOOGLE_CLIENT_ID and GOOGLE_CLIENT_SECRET in your .env file.

GitHub OAuth Credentials

To set up GitHub OAuth:

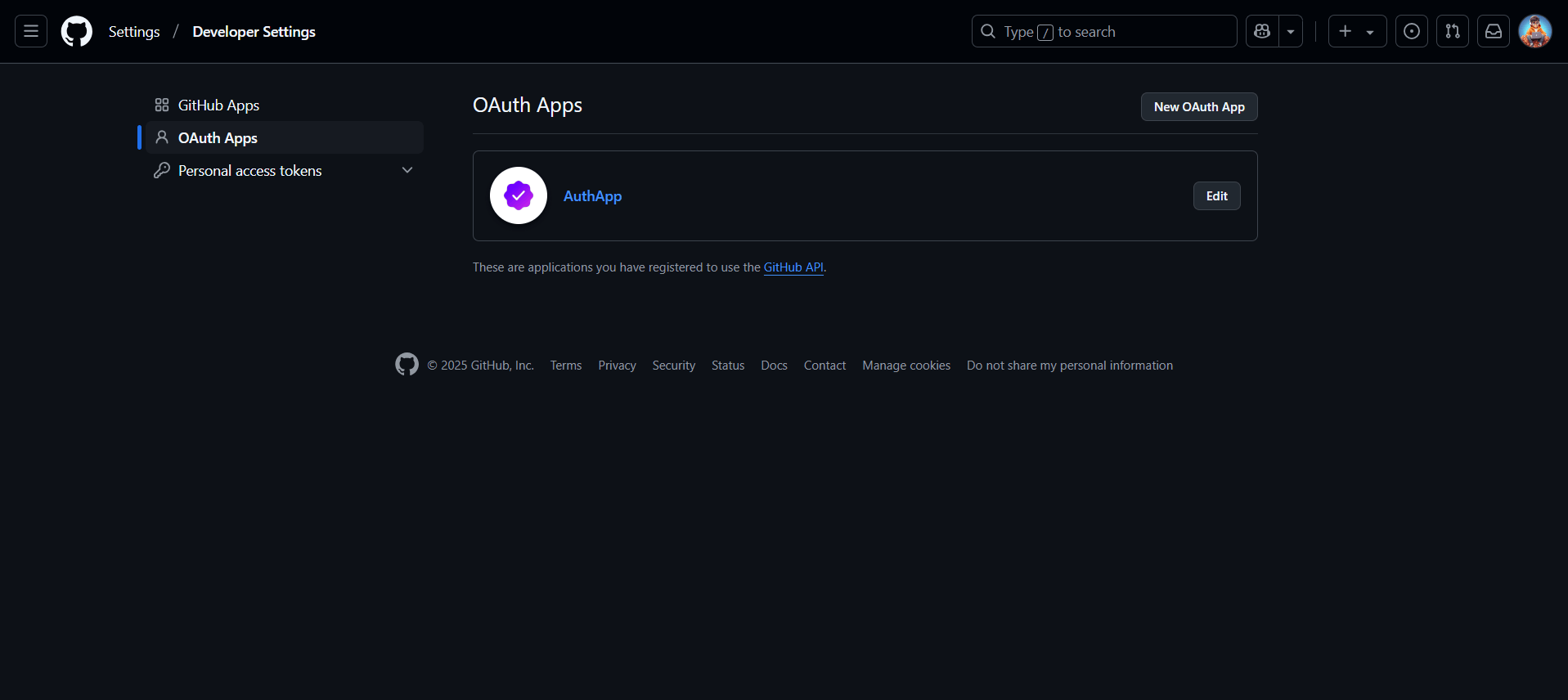

Go to GitHub and navigate to Settings > Developer settings > OAuth Apps.
Click "New OAuth App".

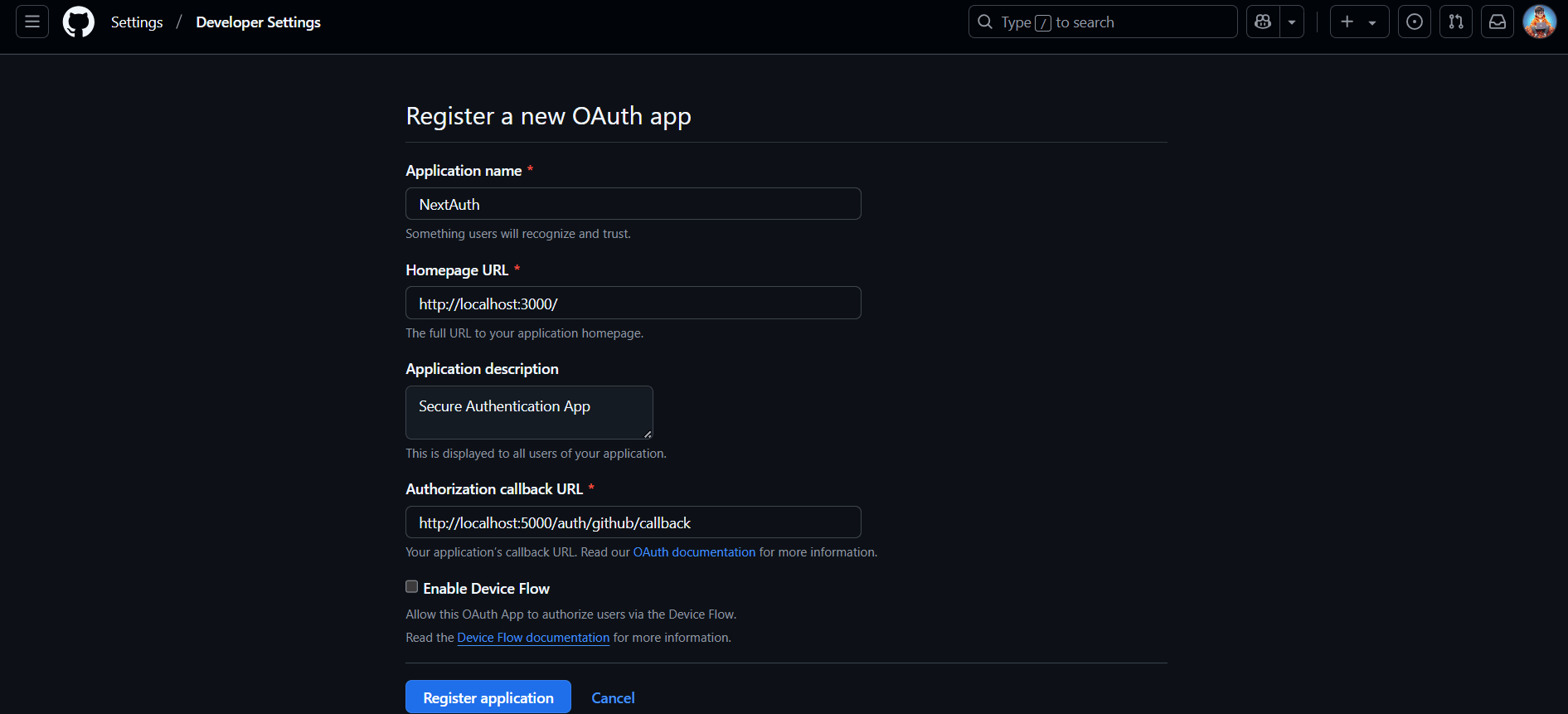

Fill in the application name, homepage URL, and authorization callback URL.
Click "Register application" to create your OAuth app.
You'll see your new client ID. Click "Generate a new client secret".
Use these as GITHUB_CLIENT_ID and GITHUB_CLIENT_SECRET in your .env file.

CUSTOMIZATION • APR 2025

Customization

Frontend Customization

Tailor the UI to match your brand

Modify React components and styles in the frontend/app folder to customize the UI.


├── Frontend
      ├── app
      │   └── |── Dashboard
      │       ├── forgot-password
      │       ├── login
      │       ├── signup
      │       ├── api.js
      │       ├── layout.ts
      │       ├── page.ts
      ├── components
      │   ├── ui
      │       ├── Button.tsx
      │       ├── Card.tsx
      │   ├── Home.tsx
      │   ├── Header.tsx
      │   ├── Footer.tsx
      |── hooks
      │   ├── useAuth.js
      |── lib
      │   ├── utils.ts
      |── public
      |      |── icons
      |      |── images
      |      |── favicon.ico
      |── styles
      |      |── globals.css
      |── .env
      |── .gitignore
      |── package.json
      |── README.md
      |── tsconfig.json

Backend Customization

Extend functionality to meet your needs

Add new routes in the backend/routes folder or modify existing middleware and controllers for specific business logic.


├── Backend
      |── config
      |   ├── database.js
      ├── controllers
      |   ├── auth.js
      |   ├── users.js
      ├── middleware
      |   ├── auth.js
      |── models
      |   ├── User.js
      |── routes
      |   ├── auth.js
      |   ├── users.js
      |── utils
      |   ├── email.js
      ├── server.js
      |── .env
      |── .gitignore
      |── package.json
      |── package-lock.json
      |── README.md

TROUBLESHOOTING • APR 2025

Troubleshooting

Common Issues and Solutions

Quick fixes for frequent problems

Missing Environment Variables

Ensure the .env file exists in the backend directory and contains all required values.

Solution: Double-check your .env file and make sure all variables are correctly set.

Port Already in Use

Another process might be using the default port for the frontend or backend server.

Solution: Change the port in the respective configuration files or terminate conflicting processes.

OAuth Login Issues

Problems with Google or GitHub authentication could be due to misconfigured credentials.

Solution: Verify your Google and GitHub client credentials and ensure the redirect URIs are correctly set in your OAuth provider's dashboard.

TECH STACK • APR 2025

Tech Stack Overview

Frontend

Building dynamic user interfaces

React.js for component-based UI development
Next.js for server-side rendering and routing
Tailwind CSS for responsive and customizable styling
Redux Toolkit for state management
Axios for API requests

Backend

Powering your application server

Node.js and Express.js for scalable server-side logic
MongoDB for flexible, document-based data storage
JWT for secure authentication token handling
Passport.js for authentication strategies
Mongoose for MongoDB object modeling

If you're facing any issues or have questions, our support team is here to help!
